Lock Overview

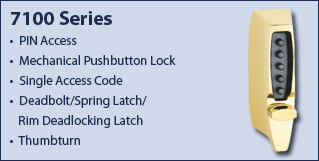

Simplex 7000 Series

The 7000 Series Light Commercial / Residential Lock incorporates slim line robust design and security. Utilizing the Simplex code chamber with the option of Deadlatch or Deadbolt to suit any application.

The Simplex 7000 can also be used alone, or with another lock in residential applications. Optional model features include spring latch, deadbolt, key override and panic exit device. The rugged all-metal construction is weather resistant, providing added strength and durability.

Features & Benefits

· Easy to maintain - no batteries to replace.
· Durable heavy-duty construction.
· Removable or interchangeable cores
· Optional emergency key override
· Optional unlocked passage feature

Options

Function Options

· [7102] 25mm throw Tubular Deadbolt, 70mm Backset, Manual Relock
· [7106] 16mm throw Rim Deadlatch, 60mm Backset, Automatic Relock
· [7108] 25mm throw Tubular Deadbolt, 60mm Backset, Manual Relock
· [7104] 13mm throw Tubular Deadlatch, 60-70mm Backset, Automatic Relock

Features:
- Single access code—one easy to manage code for all users
- Lock is easily programmed via keypad without removing lock from the door
- Field reversible
- Locking Device Options:
  - Deadbolt — must be manually relocked
  - Deadlocking latch — relocks automatically when door closes
  - Rim locking latch — relocks automatically when door closes; also has latch holdback
Operation Mode Options
- Single credential—access
Finishes:

Bright Brass	Satin Chrome	Antique Copper	Gold Vein
Antique White	Silver Vein	Black	Antique Brass

Certification and Standards:
- Highly weather resistant
Warranty:
- 1-year warranty
