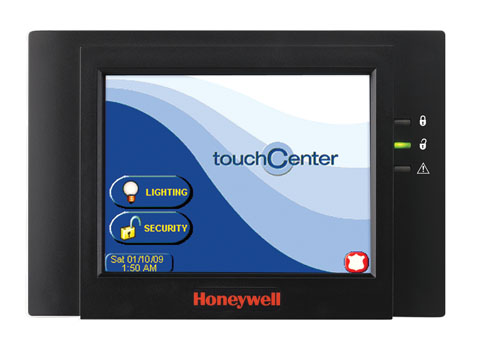

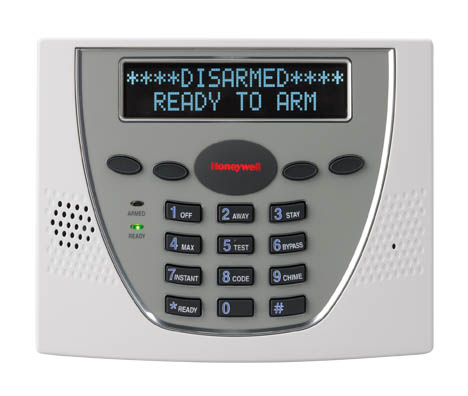

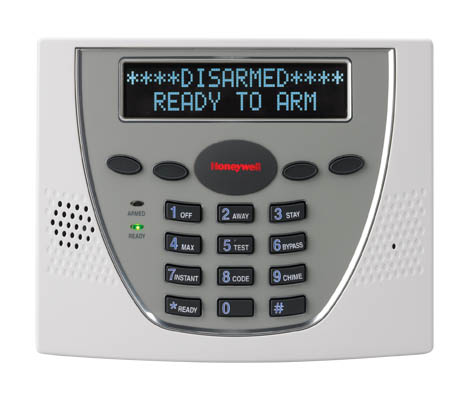

The Vista 20P has power and versatility that no other security system truly has.  You can start with a basic security system and later expand your protection to include unique and innovative features that you will enjoy.  You can pick a digital keypad that actually talks in plain English with exact zone descriptions or the intuitive graphic touchscreen display whichhas icons and menu driven prompts that will guide you through every step of proper system operation.  You can also arm the system, turn on lights, receive a e-alert on a emergency condition and leave family members a message that they can retreive right from the keypad when they turn on the security system on or off.  The system can be customized for special protection needs like a gun or liquor cabinet.  As the system is fully expandable up to 48 protection zones which can also use wireless or hardwire security devices, you will never wish you should have bought a different security system.

Features:

• IP alarm reporting and uploading/downloading capability for Internet and Intranet use via 7845i, 7845i-ENT, 7845GSMR or 7845i-GSM
• Supports four graphic touchscreen keypads
• Wireless keys can be programmed without using zones
• Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
  – 40 hardwire expansion zones
  – 40 wireless expansion zones
• Two low current on-board trigger outputs
• 100 Event Log viewable at system keypads with time/date stamp
• 48 system user codes assignable to either partition
• Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
• Two independent partitions plus a common partition
  – Global Arming from any system keypad
  – Goto function to view or operate one partition from the other
  – Separate partition account numbers
• 16 output devices
  – Relays (Model 4204 Relay Modules, or 4229 Expansion Module), and/or X-10® devices (when used with a 4300 Transformer)
• Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
• Supports four-wire and up to 16 two-wire smokes
  – Works with Sentrol CleanMe™ maintenance signal
• Multiple actions on output devices depending on system state
  – Turns lights off when system arms
  – Turns the same light on
  – Flashes same lights when system is in alarm
when system disarms
• Built-in phone line cut monitor with programmable delay and annunciation options
  – Display on system keypads
  – Trigger local sounders
  – Trigger system bell

Security Dealer Features

• Automatic System Load Shed
  – During extended AC power fail, the system battery will be disconnected to prevent irreversible battery failure. Reduces service calls to replace batteries.
• Dynamic Signaling
  – Reduces redundant reporting to the central station when multiple reporting methods are used; i.e. digital dialer and AlarmNet radio

Valuable End-User Features

• Viewable on system keypads:
  – Time and date display*
  – Event log*
– Exit countdown
• Auto keypad backlighting on entry
• Keyswitch arming
• Programmable macro buttons and single-button arming
• Supports a variety of wireless remote controls for single-button operation
• User Scheduling
  – Automatically activates X-10 and relays at programmed times
  – Latchkey reports to pagers
  – Auto arm/disarm
  – “User access” time windows
• Supports up to four end-user numeric pagers
• VIP Module allows system control from any touchtone phone
• Chime by zone
  * Requires custom alpha keypad

Call us today so we can show you how to configure your security system.

Tel: (416) 736-8383
