Trilogy® weatherproof 12/24VAC/DC digital access control keypads with PC programming & audit trail

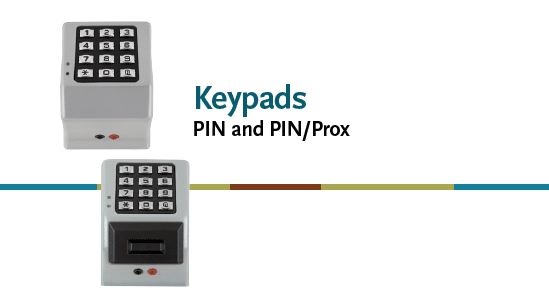

Trilogy DK3000 PIN Code Keypad

 •    2000 PIN user codes, multilevel security access control keypads
 •    Ideal for use with 12V or 24V (AC or DC) electric door strikes, mag locks or Alarm Lock Remote Release Mag Lock Kit (adjacent page)
 •    Wall mount or single gang box
 •    2 High-Current Rated 8A Relays for entry, alarm zone shunting or lock release by real-time schedule
 •    Vandal-resistant, all metal 12-button keypad
 •    Keypad or PC programmable
 •    40,000 Event audit trail report/print to PC or hand held printer or DTMIII Data Module
 •    Timed Egress Input – Selectable door open times 5, 10 or 15 seconds
 •    500 Scheduled events & real time clock
 •    Tamper supervised (reportable to alarm system)
 •    Remote release feature; request-to-exit input
 •    Weatherproof -31 to 151F (-35 to +66C)


Digital access control keypad with prox reader
Trilogy PDK300 PIN/Prox ID Card Keypad
Same features as DK3000 above, plus

 •    Built-in HID proximity reader
 •    Accepts up to 2000 PIN codes and/or HID cards and keyfobs

Call us today at 416 773-5625
